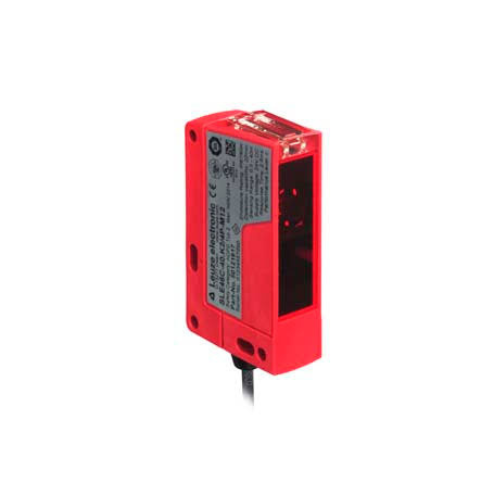

50121918 SLE46C-40.K2/4P Leuze Vietnam

Thông số chính:

• Model: SLE46C-40.K2/4P
• Part Number: 50121918
• Loại: Bộ thu (Receiver)
• Khoảng cách làm việc: Ghép với bộ phát tương ứng dòng SLS46C, khoảng cách lên đến 40 m.
• Nguồn cấp: 24 VDC
• Ngõ ra: 2 x PNP transistor (Switching output + Diagnostic output)
• Thời gian đáp ứng: 2.5 ms
• Cáp kết nối: PUR dài 2 m, 4 lõi
• Cấp bảo vệ: IP67 / IP69K
• Nhiệt độ hoạt động: -30…+60 °C
• Chứng nhận an toàn: Type 2 (IEC/EN 61496), SIL1, PL c (khi kết hợp với bộ giám sát an toàn phù hợp như MSI-TR1B).

LIST CODE

1 100%  Germany Origin

Leuze Vietnam

50109669

Code : IS 212MM/4NO-4N0-S12

Inductive switch

Typ. operating range limit Sn: 4 mm

Operating range Sa: 0 ... 3.2 mm

Supply voltage: 10 ... 30 V, DC

Digital switching outputs: 1 Piece(s)

Switching output 1: Transistor, PNP, NO (normally open)

Switching frequency: 2,000 Hz

Connection: Connector, M12, 4-pin

Design, housing: Cylindrical

Dimensions: 12 mm x 60 mm

Thread size: M12

Type of installation: Non-embedded / non-flush

Housing material: Metal

1 100%  Germany Origin

Leuze Vietnam

50121918

Code : SLE46C-40.K2/4P

Single light beam safety device receiver

Type: 2, IEC/EN 61496, in combination with a suitable test monitoring unit, e.g. MSI-TR1B

SIL: 1, IEC 61508, in combination with a suitable test monitoring unit, e.g. MSI-TR1B

Performance Level (PL): c, EN ISO 13849-1:2008

Category: 2, EN ISO 13849:2008

Supply voltage: 24 V DC, -20 ... 20 %

Response time: 2.5 ms

Connection: Cable, 2,000 mm, PUR

Design: Cubic

Part no.: 50028010- phaseout, replace by: 50121918 . Pls recheck before order .

1 100% Japan Origin

SANYO DENKI Vietnam

Model: R2AA18550RXH00

Servo Motor, Single Turn Absolute Encoder

Báo rời

1 100% Taiwan Origin

MOXA Vietnam

PWR-12150-USJP-SA-T

12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, USJP Plug

1 100% Taiwan Origin

MOXA Vietnam

NPort 5250A

2 port device server, 10/100M Ethernet, RS-232/422/485, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C, w/ adapter

1 100%  France Origin

Celduc Vietnam

Code: SKA20420

Solid State Relay

SSR 5A/12-275VAC/CTRL 4-30VDC/VDR

MOQ: 20pcs

1 100%  Germany Origin

Leuze Vietnam

50109669

Code : IS 212MM/4NO-4N0-S12

InductiveSensor

Typ. operating range limit Sn: 4 mm

Operating range Sa: 0 ... 3.2 mm

Supply voltage: 10 ... 30 V, DC

Digital switching outputs: 1 Piece(s)

Switching output 1: Transistor, PNP, NO (normally open)

Switching frequency: 2,000 Hz

Connection: Connector, M12, 4-pin

Design, housing: Cylindrical

Dimensions: 12 mm x 60 mm

Thread size: M12

Type of installation: Non-embedded / non-flush

Housing material: Metal

1 100%  Germany Origin

Leuze Vietnam

50121918

Code : SLE46C-40.K2/4P

Single light beam safety device receiver

Type: 2, IEC/EN 61496, in combination with a suitable test monitoring unit, e.g. MSI-TR1B

SIL: 1, IEC 61508, in combination with a suitable test monitoring unit, e.g. MSI-TR1B

Performance Level (PL): c, EN ISO 13849-1:2008

Category: 2, EN ISO 13849:2008

Supply voltage: 24 V DC, -20 ... 20 %

Response time: 2.5 ms

Connection: Cable, 2,000 mm, PUR

Design: Cubic

Part no.: 50028010- phaseout, replace by: 50121918 . Pls recheck before order .
