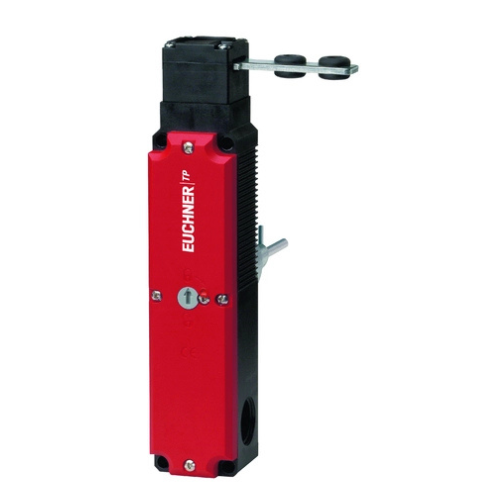

Công tắc an toàn TP3-2131A024MC1743 Euchner
Giá bán: Liên hệ
Hãng sản xuất: Euchner Vietnam
Danh mục: Thiết bị an toàn
Gọi lại cho tôi
0373238670
Công tắc an toàn TP3-2131A024MC1743 Euchner
Việt Nam
Công tắc an toàn TP, đầu vào cáp M20 x 1,5, tiếp điểm cho vị trí cửa, nút thoát hiểm
- 3 x đầu vào cáp M20 x 1,5
- Tiếp điểm cho vị trí cửa
- Phát hành phụ trợ
- Thoát hiểm, ngắn
- Nguyên lý dòng điện mạch kín
Electrical connection values
| Power consumption | 8 W |
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 50 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
