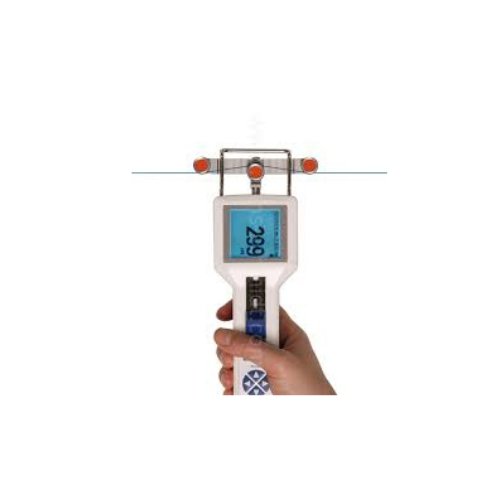

DTX-2000 Tension Meter Hans-schmidt

Giá bán: Liên hệ

Hãng sản xuất: Hans Schmidt Vietnam

Danh mục: Bộ chuyển đổi tín hiệu

Gọi lại cho tôi

Liên hệ tư vấn

Ms Như

nhu@ansgroup.asia

0373238670

live:.cid.5bbb32e4b8465e80

Thông tin sản phẩm
Thông số kỹ thuật

DTX-2000 Tension Meter Hans-schmidt Vietnam

Dùng phổ biến trong:
- Ngành dệt (sợi, chỉ, yarn)
- Dây kim loại nhỏ (wire, copper wire)
Model DTX-2000 có dải đo khoảng 20 – 2000 cN

Thông số & tính năng chính

Dải đo: 20 → 2000 cN
Độ chính xác: khoảng ±0.5% toàn thang đo
Màn hình:
- Hiển thị số + biểu đồ lực theo thời gian
Bộ nhớ:
- Lưu tới ~60.000 giá trị đo
Kết nối:
- USB (có thể xuất dữ liệu ra PC)
Pin:
- Dùng liên tục ~40 giờ
Tính năng nâng cao:
- Lưu nhiều chế độ đo (statistics, logging…)
- Có thể cài cảnh báo MIN/MAX
Cơ chế:
- Dùng con lăn để đo lực căng sợi khi chạy

LIST CODE

1 100% Japan Origin

METROL Vietnam

Model: STS060PA-L

Stopper Bolt Switch

2 100% Japan Origin

METROL Vietnam

Model: P10DL-01-11

Precision Switch

3 100% Japan Origin

METROL Vietnam

Model: P10DB-AU2H-5

Precision Switch

4 100% Japan Origin

METROL Vietnam

Model: P10DA-12-02

Precision Switch

1 100% EU Origin

Wenglor Vietnam

Code: LD86PA3

Retro-Reflex Sensor

1 100% AUSTRALIA Origin

NHP Vietnam

Part number: ISOC332PG

SWITCHED OUTLET 3 ROUND PINS32

AMP 250V GREY

1 100% Korea Origin

Pora Vietnam

Model: PR-DTC-2100R

Tension controller

1 100% Korea Origin

Dotech Vietnam

Code: DPR-TH01-H6D100L*1/2

TEMP PROBE(HEAD TYPE)

1 100% Korea Origin

Daejin Blower Vietnam

Model: DISD-160-SS-3550A14

Description: COOLING FAN

220V 50Hz/60Hz

*MOQ = 4pcs

1 100% Germany Origin

Fey Lamellenringe Vietnam

Model: 3SA008499

FK 3 - AS 280,00 / 9,00 x 1,50 Mat. 1.1221

1 set = 3 ring

*MOQ = 4set

1 100% EU Origin

Optris Vietnam

Code: XI80LTF02T090

Miniature spot finder infrared camera 80x80

pixels / Miniatur-Spot-Finder Infrarotkamera

80x80 Pixel

Industrial camera with motorized focus and

USB 2.0 interface,

Automatic spot search with direct analog

output, optional process interface with up to 9

analog and alarm outputs,

Imager with selectable lens, USB cable (1m

cable length),

1m cable for inputs/outputs with terminal block,

user manual,

Mounting bracket with tripod thread and PIX

Connect software package

Spotfinder XI80 BASIC

Measuring range: -20 ... 100°C / 0 .. 250°C /

(20)150°..900°C (switchable)

Optics: 80° x 80° / f=2.3mm

Optical resolution: 80 x 80 pixels

Optical resolution (D:S) up to 190:1 (12° optics)

Protection class: IP 67

Manual motorized focus

USB 2.0 interface, direct analog OUT and

Analog/Digital IN

including

PIX Connect software package

1 100% Germany Origin

Leuze Vietnam

Code : HT5B/2

Diffuse sensor with background suppression, Operating range limit: 0.002 ... 0.4 m, LED, Red, 10 ... 30VDC, NPN Light switching (dark switching by reversing polarity of UB), 1,000 Hz, 2M cable, Multiturn potentiometer, IP67, -40 ... 60 °C

2 100% Germany Origin

Leuze Vietnam

Code : DDLS 508 120.3 L

Optical data transmission, Working range100 ... 120,000 mm, Laser=Infrared, 18-30VDC, Ethernet, M12 5pin A-Coded + M12 4pin D-coded connectors, Diecast aluminum housing, -5 ... 50 °C, IP65, Integrated laser alignment aid

3 100% Germany Origin

Leuze Vietnam

Code: RSL420-M/CU416-10

Type 3, PL d, laser scanner 270° scanning angle 4.5m sensing range. Setup via Bluetooth or Ethernet TCP/IP, Inbuilt messaging display and electronic sprit level. 10 x configurable PF and WF maps. 2 x PNP OSSD outputs. Connection base with 10M cable

4 100% Germany Origin

Leuze Vietnam

Code: FT5I.X3/2N - SPARE PART

Energetic diffuse sensor, Detection of dark objects at short range, high-gloss or polished surfaces, V-optics, LED, Infrared, range limit, white 90% 0.001...0.13m, 10-30VDC, NPN Light switching + NPN Dark switching, 500Hz, 2M cable, Teach button, IP67

1 100% US Origin ISSI

Vietnam

P/N: IS42S32800J-6BLI

256M, 3.3V, SDRAM, 8 DRAM

2 100% US Origin

Microchip Vietnam

P/N: LAN8720A-CP-TR

RMII 10/100 ETH XCVR Ethernet Ics

3 100% US/Japan Origin

Onsemi Vietnam

P/N: CAT24M01WI-GT3

1MB I2C SERIAL EEPRO EEPROM
