ADM-870C MULTIMETER Shortridge Instruments
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
0373238670
ADM-870C MULTIMETER Shortridge Instruments VietNam
Giới thiệu chung

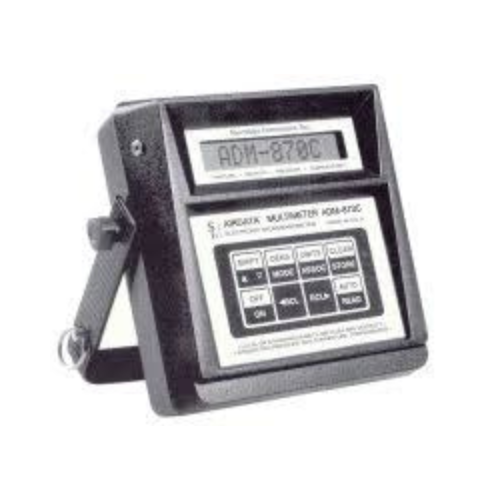

ADM-870C được thiết kế cho các ứng dụng cân bằng gió và phân phối không khí có yêu cầu cao, cho phép đo đồng thời lưu lượng gió, vận tốc gió, áp suất và nhiệt độ.
Thiết bị tích hợp cổng truyền thông RS-232 để xuất dữ liệu sang máy tính hoặc máy in, phục vụ lưu trữ và phân tích.
Thông số kỹ thuật chính
-
Chức năng đo:
-
Vận tốc gió
-
Lưu lượng gió
-
Áp suất vi sai
-
Áp suất tuyệt đối
-
Nhiệt độ
-
-
Độ chính xác:
-
Vận tốc gió: ±3% giá trị đo
-
Áp suất vi sai: ±2% giá trị đo
-
Nhiệt độ: ±0,5°F
-
-
Dải vận tốc gió (pitot):
-
50 – 8.000 fpm (tối đa 30.000 fpm)
-
-
Dải áp suất vi sai:
-
0,0001 – 60 in.WC
-
-
Bộ nhớ:
-
Lưu trữ khoảng 200 phép đo, có tính trung bình, min/max
-
Đặc điểm nổi bật
-
Độ chính xác cấp phòng thí nghiệm.
-
Tự động bù mật độ không khí theo áp suất và nhiệt độ.
-
Chức năng ghi nhớ và tính trung bình số liệu.
-
Có thể kết hợp với FlowHood 8400 để đo lưu lượng trực tiếp.
-
Thiết kế cầm tay, phù hợp đo hiện trường
LIST CODE
1. Code: AV56A1KFX6YXGP50
Replaces part number AV56A1TFX1YXG007
THIN-LINE™ III Heavy Mill Duty Magnetic Modular Encoder 4.5"" C-Face Mount
Housing Type: 1 - Single Output
Rotor Bore Size: KF - 1 1/8"" Thru-Shaft Cam Screw Rotor for Wolong/GE Pitch Motor
Cover Style : X - No Cover Plate
Line Driver: 6 - 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)
Left Output PPR: Y - 1024 PPR
Right Output PPR: X - No Right Output, Single Output Only
Connector Options: G - Ind'l w/Northstar Pinout (EPIC Style connector), w/mating plug, LED diagnostics
Modifications: P50 - Special options for GE Motor, upgraded model including diagnostic LED & cam screw rotor and super magnetic shielding "
2. Code: AV6AS4B23QA2A000
AV6A Solid Shaft Optical Light Mill Duty Absolute Encoder
Communication Bus
S - SSI Communication
Flange
4 - 2.5 in. Square flange, 1.25 in. male pilot
Shaft Size
B - 3/8 inch x 5/8 inch long Solid Shaft, w/flat (flange #4 only)
Turns/bits/MT
2 - 4096 Turns/12 bits
CPR/bits Per Turn/ST
3 - 8192 Counts per Revolution/13 bits
Connector
Q - M23/12 pin w/o Plug, Kubler Pin Out
Connector Exit
A - Side/Radial exit
Output Coding
2 - Gray Coding
IP Rating
A - IP65 Shaft Seals
Modifications
000 - No Special Features "
3. Code: HS35MYX6CPU1CA00
HS35M Hollow Shaft Magnetic Mill Duty Encoder
Left Output PPR: Y - 1024 PPR
Right Output PPR : X - No Right Output
Line Driver: 6 - 5-28v In/Out (7272)
Hollow Shaft Bore Size: C - 5/8 in. via insert
Connector Options: P - 10 Pin Mini-Epic Style with Plug
Mounting: U - Universal (Thru & End of Shaft)
Protection: 1 - Protective Basket Included Anti-Rotational Tether: C - 0.375 16 T-Bolt Fan Cover Tether
Channels and Modifications: A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ "
4. Code: HS35MYX6CPU1HA00
HS35M Hollow Shaft Magnetic Mill Duty Encoder
Left Output PPR
Y - 1024 PPR
Right Output PPR
X - No Right Output
Line Driver
6 - 5-24v In/Out (7272)
Hollow Shaft Bore Size
C - 5/8 in. via insert
Connector Options
P - 10 Pin Mini-Epic Style with Plug
Mounting
U - Universal (Thru & End of Shaft)
Protection
1 - Protective Basket Included
Anti-Rotational Tether
H - A and F Tether Kits
Channels and Modifications
A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\
HS35MYX6CPU1HA00 Replaces part number HS35MYX6HPU1HA00 "
5. Code: HS35MYX6FCU0XA00
HS35M Hollow Shaft Magnetic Mill Duty Encoder Left Output PPR
Y - 1024 PPR
Right Output PPR
X - No Right Output
Line Driver
6 - 5-24v In/Out (7272)
Hollow Shaft Bore Size
F - 1 in. (Native Bore)
Connector Options
C - 10 Pin MS Style with Plug, Avtron/BEI Phasing
Mounting
U - Universal (Thru & End of Shaft)
Protection
0 - No Protective Basket
Anti-Rotational Tether
X - No Tether Hardware
Channels and Modifications
A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ "
6. Code: HS35MYX6FCU1HA00
HS35M Hollow Shaft Magnetic Mill Duty Encoder
Left Output PPR
Y - 1024 PPR
Right Output PPR
X - No Right Output
Line Driver
6 - 5-24v In/Out (7272)
Hollow Shaft Bore Size
F - 1 in. (Native Bore)
Connector Options
C - 10 Pin MS Style with Plug, Avtron/BEI Pin Out
Mounting
U - Universal (Thru & End of Shaft)
Protection
1 - Protective Basket Included
Anti-Rotational Tether
H - A and F Tether Kits
Channels and Modifications
A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\
HS35MYX6FCU1HA00 Replaces part number RA35MY6FCU1HA00 "
7. Code: HS35MYX8FPU1CA00
HS35M Hollow Shaft Magnetic Mill Duty Encoder
Left Output PPR : Y - 1024 PPR
Right Output PPR : X - No Right Output
Line Driver : 8 - 5-24v In/Out (HX)
Hollow Shaft Bore Size : F - 1 in. (Native Bore)
Connector Options : P - 10 Pin Mini-Epic Style with Plug
Mounting: U - Universal (Thru & End of Shaft)
Protection: 1 - Protective Basket Included Anti-Rotational Tether: C - 0.375 16 T-Bolt Fan Cover Tether
Channels and Modifications: A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ "
8. Code: M6-4S2HX51-W003
M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1
Hollow Shaft Bore Size : 4 - 1 inch Hollow Shaft
Mounting : S - Standard End-of-Shaft Mounting
Line Driver : 8 - 5-24V In/Out Protected Line Driver
Left Output : H - High Res.
Right Output : X - No Right Output
Base PPR: 51 - 512 PPR
Marker : - - No Marker
Connector Options : W - Terminal with Cable Gland
Modifications: 003 - Includes B28390 Torque Arm Kit "
9. Code: M6C-4S1HX51-W003
M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1
Hollow Shaft Bore Size : 4 - 1 inch Hollow Shaft
Mounting : S - Standard End-of-Shaft Mounting
Line Driver : 8 - 5-24V In/Out Protected Line Driver
Left Output : H - High Res.
Right Output : X - No Right Output
Base PPR: 51 - 512 PPR
Marker : - - No Marker
Connector Options : W - Terminal with Cable Gland
Modifications: 003 - Includes B28390 Torque Arm Kit
M6C-4S1HX51-W003 Replaces the obsolete M6-4S1HX51-W003 "
10. Code: M6C-4S8HX51-W003
DESCRIPTION: M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1
Hollow Shaft Bore Size: 4 - 1 inch Hollow Shaft
Mounting: S - Standard End-of-Shaft Mounting
Line Driver: 8 - 5-24V In/Out Protected Line Driver
Left Output: H - High Res
Right Output: X - No Right Output
Base PPR : 51 - 512 PPR
Marker: - - No Marker
Connector Options: W - Terminal with Cable Gland
Modifications: 003 - Includes B28390 Torque Arm Kit "
11. Code: M6C-5S8XH51-T003
M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1
Hollow Shaft Bore Size : 5 - 1-1/8 inch Hollow Shaft
Mounting : S - Standard End-of-Shaft Mounting
Line Driver : 8 - 5-24V In/Out Protected Line Driver
Left Output : X - No Left Output
Right Output : H - High Res.
Base PPR : 51 - 512 PPR
Marker : - - No Marker
Connector Options: T - Terminal Block
Modifications : 003 - Includes B28390 Torque Arm Kit
**Replacement for the obsolete M6-5S3XH51-T003.....Please confirm before ordering…"
12. Code: M6C-5S8XH51-T005
M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1
Hollow Shaft Bore Size : 5 - 1-1/8 inch Hollow Shaft
Mounting : S - Standard End-of-Shaft Mounting
Line Driver : 8 - 5-24V In/Out Protected Line Driver
Left Output : X - No Left Output
Right Output : H - High Res.
Base PPR : 51 - 512 PPR
Marker : - - No Marker
Connector Options: T - Terminal Block
Modifications : 005 - -40C Tested Unit with Torque Arm Kit Included "
