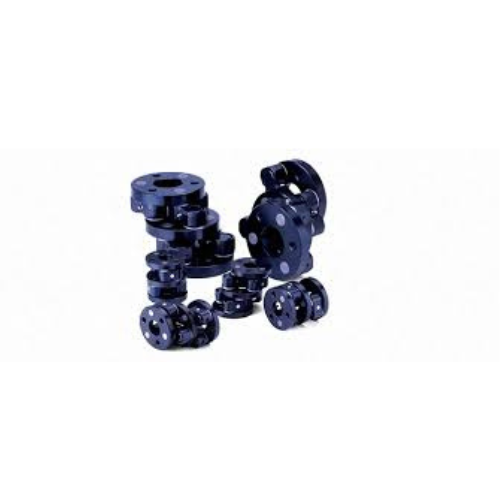

L281C SCHMIDT OFFSET COUPLING Miki Pulley
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
Gọi lại cho tôi
0373238670
L281C SCHMIDT OFFSET COUPLING Miki Pulley Vietnam
Thông số kỹ thuật – L281C Schmidt Offset Coupling
| Thông số | Giá trị |
|---|---|
| Mã model | L281C |
| Mô-men xoắn tối đa (Max. torque) | ~36,500 in-lbs (~4,121 N·m) |
| Giới hạn tốc độ thực tế (Practical speed limit) | ~1,250 rpm |
| Chiều lệch trục nhỏ nhất (S min) | ~4.50 inch (~114 mm) |
| Chiều lệch trục lớn nhất (S max) | ~1.12 inch (~28.4 mm) |
| Độ dịch chuyển trục tối đa | ~4.05 inch (~103 mm) |
| Chiều dài cơ bản | ~7.78 inch (~198 mm) |
| Độ lệch góc tối đa | ~0.025 inch (~0.64 mm) |
| Khối lượng / Inertia | ~65 lb (≈29 kg) / ~608 lb-in² (~69 kg·cm²) |
LIST CODE
| 1 | 100% US/ Japan Origin | Miki Pulley Vietnam | ZERO-MAX Model: L281C SCHMIDT OFFSET COUPLING |
| 1 | 100% USA Origin | Onicon Vietnam | MODEL: F-5525-3115-1150 (NI) Insertion Thermal Mass Flow Meter - Pipe Diameter: 21/2” - Output Signals: Loop powered 4-20 mA & RS485 - Input Power:12 - 28 VDC - Electronics Enclosure Mounting Configuration: Integral enclosure with LCD - Process Connection: Threaded MNPT (3/4 - 3” pipe sizes only) - Flow Conditioner: Insertion without flow conditioner - Pipe Size Range: 11/2 - 6” nominal diameter - Process Adapter Fitting:Standard (0-60 psig) - GAS TYPE: Nitrogen Gas |
| 2 | 100% USA Origin | Onicon Vietnam | MODEL: INSTL0094-FMH Insertion flow meter hot tap installation kit, wetted materials are bronze, brass and steel, for use in carbon steel piping systems. Kit Includes: • 2 ½” – 1 ½” x 1" or 36 – 3 x 1” NPT outlet, threadolet, carbon steel • 1” NPT Outlet, ball valve, brass • 1” NPT Nipple, brass |
| 3 | 100% USA Origin | Onicon Vietnam | MODEL: D-100-2120-300 Display module with NEMA 4 enclosure, MOD RTU, no analog output and 24 VAC power supply. Configured for active 4-20mA input. No additional inputs configured. |
| 1 | 100% Japan Origin | Aichi Tokei Denki Vietnam | Model: NW10-NTN Flow Meter *For water and hot water |
| 2 | 100% Japan Origin | Aichi Tokei Denki Vietnam | Model: NW20-PTN Flow Meter *For water and chemical fluids |
