LLT3000-100 MICRO-EPSILON
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
0373238670
LLT3000-100 MICRO-EPSILON VietNam

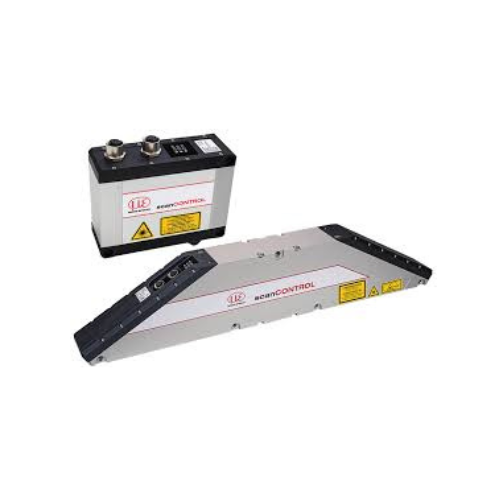

LLT3000-100 là cảm biến quét laser 2D/3D hiệu năng cao thuộc dòng scanCONTROL của Micro-Epsilon, được sử dụng rộng rãi trong các ứng dụng đo biên dạng, kiểm tra kích thước, kiểm tra bề mặt và tự động hóa công nghiệp. Thiết bị nổi bật với tốc độ quét rất cao, độ phân giải lớn và khả năng đo chính xác trong môi trường sản xuất tốc độ cao.
Đặc điểm nổi bật
- Công nghệ laser profile scanner độ chính xác cao
- Đo biên dạng 2D và tái tạo dữ liệu 3D
- Tốc độ quét tối đa lên đến 10 kHz
- Độ phân giải lên đến 2048 điểm/profile
- Dữ liệu đo lên tới khoảng 10 triệu điểm/giây
- Hỗ trợ Ethernet, RS422, Analog và Digital Output
- Tích hợp với C/C++, C#, LabVIEW
- Thiết kế nhỏ gọn phù hợp robot và dây chuyền tự động
Thông số kỹ thuật LLT3000-100
- Model: scanCONTROL LLT3000-100
- Measuring Range (Z-axis): 100 mm
- Linearity: 9 µm
- Resolution: 2048 points/profile
- Measuring Speed: tối đa 10,000 Hz
- Interface:
- Ethernet
- RS422
- Analog/Digital
- Laser class: Class 3R
- Phần mềm hỗ trợ:
- scanCONTROL Configuration Tools
- 3D View Software
LIST CODE
1 100% France /EU Origin Conductix-Wampfler Vietnam / Delachaux Group Vietnam - Conductix-Wampfler-Vietnam / Delachaux-Group-Vietnam - Conductix-Wampfler-Viet-Nam / Delachaux-Vietnam
CAT/ NO: 208 837/02 Slipring - Cổ Góp Điện Trọn Bộ
Complete spare slipring 36TC080 hub ø65 for A3X
special housing for A3X S/N 208 837/02 Slip-Ring
for replacement 36TK1
- Zn round housing with junction box
- 100W heating resistor
- STROMAG 51 selector 48BM499
- REP-03110 with support and galvanised housing
- fixing kit + membrane + seals + screws
FOR REEL: A3X 4C44 M922 RS 36TK1
Conductix-Wampfler-Slipring-Vietnam / Delachaux-Group-Slipring-Vietnam - Conductix-Wampfler-Slip-Ring-Vietnam / Delachaux-Slip-Ring-Vietnam - Conductix-Slip-Ring Vietnam / Delachaux-Slip-Ring Vietnam 1 100% Australia Origin Saimo Vietnam
Model: Saimo (FH-10-6001) Integrator IP65 - Bộ điều khiển cân băng tải điện tử
Saimo Model 6101 field mount integrator is a micro-computer driven instrument designed to compute rate and quantity of flowing material from signals representing the weight of a segment of moving material and its velocity.
Video Systems 0V00014010 Smart Bar Counting System
Video Systems SmartSystem for bar counting A2000BC with PT100
Code: 2A00000600
Cable 10m
Chọn 1 trong 2 options 1.1 100% Germany Origin
MICRO-EPSILON VietNam
Model: LLT3000-100 Laser Sensor
Laser displacement measuring system 2D/3D
scanCONTROL 3000-100
2D/3D - profile sensor
Sensor with integrated controller
Aluminium housing IP67
Measuring range: z-axis: 140 mm / x-axis: 100 mm (MMR)
Measurement points per profile: up to 2048
Profile frequency: up to 10 kHz
Light source: 10 mW (laser class 2M)
Laser wavelength: 658 nm (red)
Power supply: 11 - 30 VDC, 500 mA (Power over Ethernet available)
Interfaces:
1x Ethernet
1x multifunction port (power supply, digital input, RS422)
Included accessories:
Connection cable for multifunction port (12-pole Escha plug to open ends, 5 m)
1.2 100% Germany Origin
MICRO-EPSILON VietNam
Model: LLT3010-100 Laser Sensor
Laser displacement measuring system 2D/3D
scanCONTROL 3010-100
2D/3D - profile sensor with integrated profile analysis
Sensor with integrated controller
Aluminium housing IP67
Measuring range: z-axis: 140 mm / x-axis: 100 mm (MMR)
Measurement points per profile: up to 2048
Profile frequency: up to 10 kHz
Light source: 10 mW (laser class 2M)
Laser wavelength: 658 nm (red)
Power supply: 11 - 30 VDC, 500 mA (Power over Ethernet available)
Interfaces:
1x Ethernet
1x multifunction port (power supply, digital input, RS422)
Included accessories:
Connection cable for multifunction port (12-pole Escha plug to open ends, 5 m)
Batbuoc
2 100% Germany Origin MICRO-EPSILON VietNam Model: SCR3000A-5
Ethernet Interface cable 5m, for drag chain and robotic use,
for scanCONTROL 2500, 2600, 2900, 3000 series and ThicknessSENSOR.
8-pole M12-plug to 8-pole RJ45-plug.
Cable diameter: app. 7mm.
Bending radius for fixed installation: 5x cable diameter.
Minimum bending radius for continuous flexing: 10x cable diameter.
Expected cycles for bending:
At max. torsion of +/- 180°/m and bending radius of 9x cable diameter: 2.2 mio. cycles
100% AUSTRALIA Origin NHP Vietnam Part number: NHPICL183
BUSBAR COMB 18WAY 3P PIN TYPE 80A END-FED/130A CTR-FED
2 100% AUSTRALIA Origin NHP Vietnam Part number: NHPDTTAX50PN
DIN-T TERMINAL AXIAL PIN 50MM
3 100% AUSTRALIA Origin NHP Vietnam Part number: NHPDTRT25100A ( replaces DSRCBT25100A)
RCBO DINT 10KA 3P+N 25A C CURVE 100MA TYPE A LONGBODY 54MM
4 100% AUSTRALIA Origin NHP Vietnam Part number: NHPISOC532PG
SWITCHED OUTLET 5 ROUND PINS 32A 500V AC GRY 63MM BASE IP66
5 100% AUSTRALIA Origin NHP Vietnam Part number: NHPISOC315PG
SWITCHED OUTLET 3 FLAT PINS 15A 250V AC GRY 38MM BASE IP66
6 100% AUSTRALIA Origin NHP Vietnam Part number: NHPISOC332PG
SWITCHED OUTLET 3 ROUND PINS 32A 250V AC GRY 63MM BASE IP66
<3 jprob 1 100% Korea Origin WELTEM Vietnam - WELTEM Humidifier Vietnam - WELTEM Humidifier Vietnam - WELTEM-Humidifier-Vietnam
Part No: WPD-120 Dehumidifier
Dehumidifier
Update May-12 2 100% Korea Origin WELTEM Vietnam
Dehumidifier Part No: WPD-180 Dehumidifier
Dehumidifier
WELTEM Dehumidifier Vietnam - WELTEM-Dehumidifier-Vietnam - WELTEM-Vietnam - WELTEMvietnam
Felm Vietnam
F3 315S-4
Motor F3 315S4 – 110KW – 4P – B3 – V.400.50Hz
Caprari Vietnam - Caprari Pump Vietnam - Caprari Pump Head Vietnam
Code: NCH150-500/465 Pump Head only
(Pump head without Motor)
No. 790902
Wheel size D.465
1 100% Korea Origin Rezontech Vietnam Part No.: RFD-3000X
Flame Detector
Ex, IR3, Including Bracket(BK-02)
1 100% Germany Origin Schuhmann Messtechnik Vietnam Article no: TTSV2.00GW ( REPLACE TRSV2.00UC)
Analog Distributor with transmitter feeding
1 input, 2 outputs, transmitter feeding
Input: 1x 0(4)...20 mA or 0(2)...10 V
Output simultanoeus: 2 x 0(4)...20 mA and 0(2)...10V
Transmitter feeding ca.: free state 27V +-5%,
Imax=20mA bei 22V
Linearity error: < 0,1%
Pluggable screw clamps
Auxiliary power: 24...250 V DC
90...253 V AC
22,5 mm housing for top hat rail
1-channel
1 100% Italy Origin Gefran Vietnam Code: K30-6-M-B07C-1-4-0-S 2130X000X00
F040057
NaK FILLED MELT PRESSURE TRANDUCERS
2 100% Italy Origin Gefran Vietnam Code: MN2-6-M-B07C-1-4-D 2130X000X00
F008334
MELT PRESSURE TRANSMITTERS
3 100% Italy Origin Gefran Vietnam Code: K32-6-M-B07C-1-4-D-I 2130X000X00
F042381
NaK FILLED MELT PRESSURE TRANDUCERS
4 100% Italy Origin Gefran Vietnam Code: MN2-6-M-B05C-1-4-D 2130X000X00
F008331
MELT PRESSURE TRANSMITTERS
5 100% Italy Origin Gefran Vietnam Code: KE0-7-M-B07C-1-4-0-S-P-E-D70 2130B000X00
F064036
NaK FILLED MELT PRESSURE TRANDUCERS
6 100% Italy Origin Gefran Vietnam Code: ME0-6-M-B07C-1-4-0 2130X000X00
F007649
MELT PRESSURE TRANSMITTERS
7 100% Italy Origin Gefran Vietnam Code: ME0-6-M-B05C-3-4-0 2130X000X00
MELT PRESSURE TRANSMITTERS
Note: Competitor: SSM-PTV111B-7.5M-M14-6-MA.
ME0-6-M-B05C-3-4-0 2130X000X00 replace competitor brand. New connector is necessary, but customer must prepare their own cables.
8 100% Italy Origin Gefran Vietnam Code: CONNETT. FE PER TRASDUTTORI/CELLE
CON300
CONNECTOR
9 100% Italy Origin Gefran Vietnam Code: KE0-7-H-B07C-1-4-0-S-P 2130A000X00
NaK FILLED MELT PRESSURE TRANDUCERS
Note: Competitor: HPL-2E3-12A-B70Z-SO-FO-R-W-7P-070
KEO-7-H-B07C-1-4-0-S-P 2130A000X00 replace competitor brand. New connector is necessary, but customer must prepare their own cables.
10 100% Italy Origin Gefran Vietnam Code: CON. VEAM 7 POLI VOLANTE CON PRSSACAVO
CON345
CONNECTOR
