IS-TH2ER.1 Isafe-Mobile
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
0373238670
IS-TH2ER.1 Isafe-Mobile Việt Nam

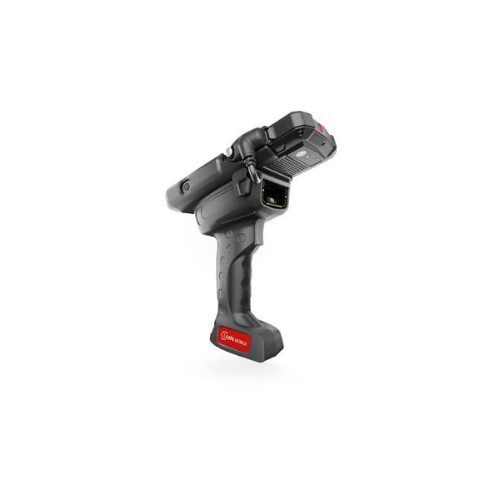

IS-TH2ER.1 là tay cầm máy quét mã vạch công nghiệp chống cháy nổ (Trigger Handle) của i.safe MOBILE – Đức, được thiết kế để kết hợp với smartphone chống cháy nổ IS540.1 5G và sử dụng trong các khu vực nguy hiểm Zone 1/21.
Đặc điểm nổi bật
- Model: IS-TH2ER.1
- Loại: Trigger Handle / Barcode Scanner
- Scan engine: Zebra SE55
- Công nghệ: PRZM Intelligent Imaging + IntelliFocus™
- Đọc được mã vạch 1D và 2D.
- Khoảng cách quét: khoảng 5,6 cm đến 12 m.
- Có tia ngắm màu xanh, hỗ trợ đọc mã trong điều kiện thiếu sáng hoặc mã bị bẩn/hư hỏng.
- Kết nối trực tiếp với thiết bị qua ISM interface, không cần Bluetooth.
- Không có pin riêng; lấy nguồn từ smartphone kết nối.
Chứng nhận an toàn
IS-TH2ER.1 được chứng nhận cho môi trường nguy hiểm:
- ATEX: II 2G Ex ib op is IIC T4 Gb / II 2D Ex ib op is IIIC T135°C Db
- IECEx: Ex ib op is IIC T4 Gb / Ex ib op is IIIC T135°C Db
- NEC500: Class I Div. 1 và Class II Div. 1
- IP68
- MIL-STD 810H
- Nhiệt độ sử dụng: -20 đến +55°C.
Thông số
| Thông số | IS-TH2ER.1 |
|---|---|
| Kích thước | 192,3 × 95,84 × 146 mm |
| Trọng lượng | 370 g |
| Độ phân giải cảm biến | 2688 × 1520 pixel |
| Tầm quét | ~5,6 cm – 12 m |
| Chuẩn bảo vệ | IP68 |
