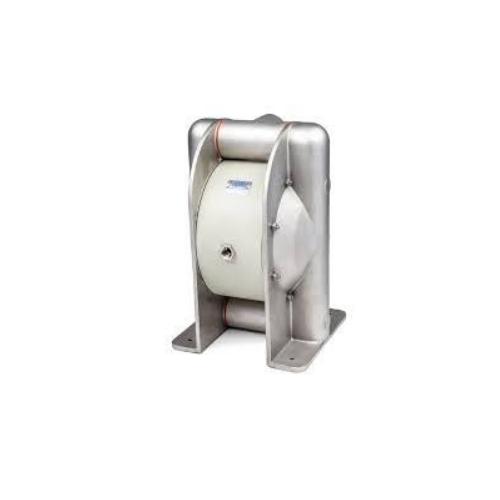

TX120ATT-11SFR TAPFLO Vietnam

TX120ATT-11SFR là dòng bơm màng khí nén (AODD – Air Operated Double Diaphragm) đến từ hãng Tapflo. Đây là giải pháp bơm chất lỏng hiệu quả, đặc biệt phù hợp cho các ứng dụng yêu cầu an toàn cao, làm việc trong môi trường hóa chất hoặc dễ cháy nổ.

Thông số kỹ thuật chính

Model: TX120ATT-11SFR
Hãng sản xuất: Tapflo
Loại bơm: Bơm màng khí nén (AODD)

Lưu lượng & hiệu suất

Lưu lượng tối đa: ~120 lít/phút
Áp suất làm việc tối đa: ~8 bar
Khả năng tự mồi: Có
Có thể chạy khô: Có (không gây hư hại)

LIST CODE

E2S Vietnam

Model: GNEXB2X21AC230AS1A1R/B

Description: GNExB2X21 21J 230Vac Xenon Strobe

A: Entries: 3 x M20 (GNExS/L=2 x M20)

S: Stopping plug/adaptor: Stainless Steel

1: Bracket/Guard (A4) 316 St/St

A: Product version: IECEx, ATEX, Ex EAC, INMETRO, SIL1 & 2

1: Product option: Standard

R: Enclosure colour: Red

B: Lens colour: Blue

1 100% EU/ Czech Origin

Balluff Vietnam

BTL0HRL

BTL7-E501-M0200-B-SA316-KA05

Magnetostrictive Sensors

1 100% Taiwan Origin

MOXA Vietnam

AWK-3252A-UN

Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -25 to 60°C

2 100% Taiwan Origin

MOXA Vietnam

AWK-1161C-UN

802.11ax Wireless Client, 1 10/100/1000BaseT(X) port, UN band, -25 to 60°C

1 100% Taiwan Origin

MOXA Vietnam

CP-118U

8 Port UPCI Board, RS-232/422/485

<3 jprob 1 100% EU Origin

TAPFLO Vietnam - TAPFLO Viet Nam - TAPFLO-Vietnam
Code: TX120ATT-11SFR

Air-operated diaphragm pump /

Druckluftmembranpumpe

Air-operated diaphragm pump type TX120ATT11SFR

with integrated air preparation

(filter pressure regulator and needle valve).

ATEX certified.

Technical description:

Max. flow rate 158 l/min (with water)

Max. discharge pressure 8 bar at 8 bar

compressed air

Suction head dry / filled 3.4 mWC / 9 mWC

Max. solid particle size 6 mm

Max. temperature range -20°C to +70°C

Center block aluminum (non-product contact)

Product-contacting housing parts aluminum

Valve seats stainless steel AISI 316L

Diaphragms PTFE

Valve balls PTFE

Suction/pressure connection G 1' internal

thread (DN 25)

Seals Klingerseal/NBR

Control valve brass, NBR

ATEX certification II 2G Ex h IIC T6...T4 Gb; II

2D Ex h IIIC T60°C...T125°C dB

Air consumption: see flow curve

Scope of delivery:

Pump including silencer

<3 rosjhq 1 100% USA Origin-
M.C.Miller-Vietnam - M.C.MillerVietnam

M.C.Miller Vietnam - M.C.Miller Viet Nam - M.C.Miller Digital Meter Vietnam

Code: M.C.Miller 44550 Digital resistance meter

Miller 400D Digital resistance meter

M.C.Miller Digital resistance meter

<3 rosjhq 1 100% France Origin

HPC EUROPE Vietnam - HPC EUROPE Viet Nam - HPC EUROPE-Vietnam - HPC-Vietnam

Code: SVR5-10-100H Screw Jack ~ Kích tay dùng cho xe đẩy tay (Vít Me Bi)

HPC SCREW JACK 10/1 STROKE 100

Course 100mm

<3 jproaut 100% Japan Origin

AichiTokei Vietnam - Aichi Tokei MassFlow Controller Vietnam - Aichi Tokei Mass Flow Controller Vietnam

Aichi Tokei Mass Flowmeter

AichiTokei Digital Mass Flow Controller Standard Gas

AichiTokei Gas Digital Mass Flow Meter

AichiTokei Digital Mass Flow Controller Standard Gas

<3 jproaut 100% Japan Origin

Brooks Instrument Vietnam - Brooks-Instrument MassFlow Controller Vietnam - BrooksInstrument Mass Flow Controller Vietnam

Brooks-InstrumentMass-Flowmeter

Brooks Instrument Digital Mass Flow Controller Standard Gas

Brooks Instrument Gas Digital Mass Flow Meter

Brooks-Instrument Digital Mass Flow Controller Standard Gas

<3 jprohq 1 100% EU Origin - StrapexVietnam / SIGNODEvietnam - Strapex-Vietnam / SIGNODE-Vietnam

Strapex Strapping tool for plastic strapping 19 mm Vietnam / SIGNODE Strapping tool for plastic strapping 19 mm Vietnam - Strapex Strapping tool Vietnam / SIGNODE Strapping tool Vietnam - Strapex Vietnam / SIGNODE Vietnam

Replacement Model: STB 85 Strapping tool for plastic strapping 19 mm

Strapping tool for plastic strapping 19 mm
Strapex STB 85 Strapping tool
SIGNODE STB 85 Strapping tool

Battery operation for tensioning and

friction welding

Complete with 1 battery 18 V 4.0 Ah

*Note: The STB80 appears to be the predecessor model of the STB85.

***DANGEROUS GOOD

1 100% Japan Origin

CCS Inc Vietnam

Code: F20-2000549

PD3-3024-3-PI

Power Supply
