HMP155 A2BG14B1B1B1A2A Vaisala
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
0373238670

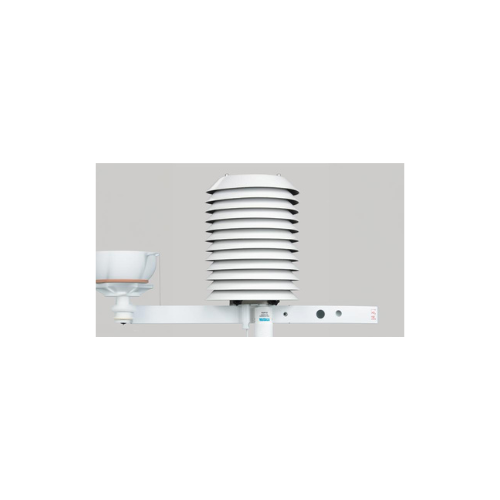

HMP155 A2BG14B1B1B1A2A Vaisala Việt Nam
HMP155 A2BG14B1B1B1A2A là cảm biến đo độ ẩm và nhiệt độ dòng HUMICAP® của Vaisala, được thiết kế cho môi trường ngoài trời và điều kiện công nghiệp khắc nghiệt như khí tượng, hàng hải, giao thông và môi trường nhiệt đới.
Đặc điểm nổi bật
- Đo đồng thời độ ẩm tương đối và nhiệt độ
- Sử dụng cảm biến Vaisala HUMICAP® độ ổn định cao
- Hoạt động tốt trong môi trường:
- độ ẩm cao
- sương mù
- mưa
- môi trường biển và hóa chất
- Tích hợp đầu dò gia nhiệt chống ngưng tụ
- Độ ổn định lâu dài, drift thấp
- Hiệu chuẩn xuất xưởng truy xuất chuẩn SI
- Thiết kế chống bụi và nước IP66
Thông số kỹ thuật chính
- Dải đo độ ẩm:
- 0 … 100 %RH
- Dải đo nhiệt độ:
- đến -80 … +60 °C
- Độ chính xác độ ẩm:
- ±1 %RH điển hình
- Cảm biến nhiệt độ:
- Pt100
- Output:
- Analog / RS485 tùy cấu hình
- Bộ lọc:
- Sintered Teflon filter chống bụi và hơi nước
LIST CODE
6 100% Germany Origin
BRAUN Vietnam
Item no.: E16-Parameter-Tool-Level2
Set with
IS-RS232-E16-L2 (interface software on data stick)
L3D05 (adapter cable)
USB/RS232 (converter)
Note: Set is not necessary, if parameters are set by the front side keys of the module
composed of:
1 piece(s) L3D05
1 piece(s) USB/RS232
1 piece(s) DS1
1 piece(s) Verschlussbeutel A6
1 100% Germany Origin
Intensiv Filter/ Reco Vietnam
2001170
Magnetventil / Solenoid Valve
Typ: 2/2-NC-4.5-24/0
<3 jprob 1 100% Finland Origin
Vaisala Vietnam - Vaisala Viet Nam - Vaisala-Vietnam
HMP155 A2BG14B1B1B1A2A
Humidity and Temperature Probe for Outdoor Applications
Probe Type: HMP155A: Analog Output for Humidity and Temperature
Signal Output Selection: 0...1V
First Analog Parameter to be Reported (Channel 1): RH 0...100%
Second Analog Parameter to be Reported (Channel 2): Temperature -40...+60 °C (-40…+140 °F)
Reporting Units in Data Message Metric Units
Humidity Sensor Type: Composite Sensor InterCapC
Heating Options to Avoid Condensation Issues: Warmed Probe
Chemical Purge for Better Long Term Stability: Periodical Chemical Purge, Specific Time Intervals
Protective Filter for Sensing Elements in Probe Head: Membrane Filter 12,0mm UV-stabilized PC, White
Data output Cable: 3.5m Cable with Connector on HMP155 End + Open Leads on the Other End
External Temperature Probe: T-probe with 2m Cable
Calibration: RH&T-calibration in room temperature
Installation Accessories for Radiation Shields: Installation Adapter for Additional T-Probe to DTR502
Hmp155 Sub Assembly
2 100% Finland Origin
Vaisala Vietnam
230727SP
Plastic Grid with Membrane Filter
3 100% Finland Origin
Vaisala Vietnam
DTR502
Radiation Shield for QMH102
1 Recheck Origin Koso Vietnam
Model: PRF318-R AirFilter
"KOSO" AIRSET, PRF318-R
<3 jprob 1 100% USA Origin
GEOKON Vietnam - rosjhq - GEOKON Viet Nam - GEOKON-Vietnam
Code: 4500S-2MPA
VW Piezometer, unvented, 2 MPa (290 psi)
Attach 02-250V6 cable in METERS
2 @ To be determined
2 100% USA Origin
GEOKON Vietnam
Code: 02-250V6-M
Blue PVC Cable, 0.250", 2 twisted pairs
1 100% Italy Origin
Gefran Vietnam
Code: PCUR060
CURS.COMP.SLITTA MK4 RINF.VERDE(S. ASS2)
Sliding cursor
Note: This is an accessory belong to the obsolete sensor MK4. The availability is while stock last.
1 100% EU Origin
KSR Kuebler/ Wika Vietnam
Model: BNA-CMB01000120-0100300D0860DZZS
BNA-BMDGAEDCARZZZZZZZHZZZGAZZ11KTB20031ZZZZ
BLR-CMZZ14ZA220300ZZ
BGU-C3ZZBN01ZZZ
BNA-EN25/16/B1-MG-M300-V60x2-MRA-3/M-ZTSS 200
Magnetic Level Gauge Type BNA-SA1
Pressure: 10 bar ; Temp.: -10°C...120°C; Fluid density: 860 kg/m³
Design code: PED 2014/68/EU (AD2000)
Classification to PED 2014/68/EU: Category I, Module A, Fluid Group 1
Test pressure: 16 bar
Chamber dimensions: OD 60.3 x 2 mm Stainless steel 316Ti (EN 1.4571)
Process connection: Flange DIN EN 1092-1 DN 25 PN 16 Form B1
Distance C-to-C: 300 mm
Measuring range: 300 mm
Chamber end top: Pipe cap
Chamber end bottom: Flange KSR size OD 130 mm
Drain connection: Drain plug 1/2"BSP
Float: ZTSS200
Level indicator: BMD-SA, aluminium housing with plastic rollers
Dampening element: Dampening spring, bottom, with cover
Gasket(s): Sigraflex Universal Pro
Bolting: M series, stainless steel 316 (1.4404 / A4-70)
Top stand-off (T): 100 mm
Bottom stand-off (U): 200 mm
Distance lower process connection to end of the drain: 260 mm (max.)
Side distance (X): 100 mm (maximal)
Nameplate: Aluminium laser printed
BGU-1 Sil
Magnetic Switch for Magnetic Level Gauge BGU-S
Basic type: BGU-S, reed, aluminium case, cable outlet
max. AC 230V; 40VA; 1A / DC 230V; 20W; 0.5A
Number of switches: 3
Electrical connection: Cable silicone 1 m
Process temperature -40°C up to 150°C
Ingress protection: IP66
MG-AUVK5/TS-L450/M300/14
Magnetic Level Transmitter for Magnetic Level Gauge Type BLR-SB
Material: Stainless steel 316Ti (EN 1.4571)
Housing: Aluminium
Ingress protection: IP66/IP68
M20 x 1.5 mm with cable gland
Head mounted transmitter: TS - 2 wire, standard, analogue
Output signal: 4-20 mA
Housing location: Bottom mounted angled
100% level position (L1): 0 mm
0% level position: 0 mm
Measuring range: 300 mm
Sensor tube length: 450 mm
Contact separation: 5 mm
Customs tariff number: 90261089
***Notice:
Due to contradictory and missing data, we can only make suggestions.
We offer standard according to our data sheets.
This standard may partly differ from your specifications.
Please check all specifications.
Manufacturing articles are excluded from exchange and return.
1 100% DE Origin
Gemu Vietnam
R677 50D 771290HDZ - EDV number: 88737238 Manual diaphragm valve, Size DN50mm, Connection Union DIN, Body PP H, Diaphragm EPDM(29), Control function Manual Operated
** Note that Gemu updated part description shall be : R677 50D 771290HDZ
