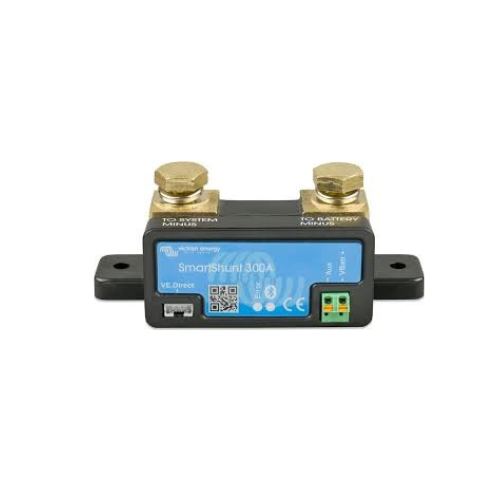

SHU050130050 Victron Energy
Giá bán: Liên hệ
Hãng sản xuất: Advantech Vietnam
Danh mục: Bộ chuyển đổi tín hiệu
0373238670
SHU050130050 Victron Energy Vietnam
Thông tin sản phẩm
- Model: SHU050130050
- Hãng: Victron Energy
- Loại: SmartShunt Battery Monitor (bộ giám sát ắc quy)
- Dòng: SmartShunt 300A
- Xuất xứ: Hà Lan (Netherlands)
Thông số kỹ thuật chính
- Dòng đo: 300A / 50mV
- Điện áp hệ thống: 6.5 – 70 VDC
- Kết nối:
- Bluetooth (VictronConnect App)
- VE.Direct (kết nối GX device)
- Chức năng đo:
- Điện áp (Voltage)
- Dòng điện (Current)
- State of Charge (SOC)
- Dung lượng tiêu thụ (Ah)
- Thời gian còn lại
- Chuẩn bảo vệ: IP21 / IP65 (tùy phiên bản)
Đặc điểm nổi bật
- Không cần màn hình → giảm dây, gọn hệ thống
- Kết nối trực tiếp điện thoại qua Bluetooth
- Đo chính xác dung lượng pin theo thời gian thực
- Có cổng phụ:
- Đo pin thứ 2
- Cảm biến nhiệt độ
- Midpoint monitoring
LIST CODE
Victron Energy Vietnam
Code: SHU050130050
Description: Smartshunt 300A/50MV
6.5 to 70V DC C/W 300A shunt
Range: 1 - 9999AH
(Monitor voltage, current, power, AH consumed & state of charge via Victron connect app)
2 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BPP900450110
Description: Cerbo GX MK2
Victron system monitor
Access victron system via VRM 8 to 70 VDC
(GX touch 50 to order separately)
3 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: SCC110050210
Description: SMART SOLAR MPPT 100/50 VICTRON CHARGE CONTROLLER
MAX CHARGER CURRENT: 50A
MAX PV VOLTAGE: 100V
BATTERY VOLTAGE: 12/24V AUTO SELECT C/W BUILT-IN BLUETOOTH
4 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BPR065022000
Description: Victron smart battery protect
Continous load: 65A
Voltage: 6 - 35V (12/24V)
Over voltage protection C/W bluetooth
5 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BBA000100100
Description: Victron battery balancer
Equalizes the state of charge of 2 series connected 12V batteries
1 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: SHU050130050
Description: Smartshunt 300A/50MV
6.5 to 70V DC C/W 300A shunt
Range: 1 - 9999AH
(Monitor voltage, current, power, AH consumed & state of charge via Victron connect app)
2 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BPP900450110
Description: Cerbo GX MK2
Victron system monitor
Access victron system via VRM 8 to 70 VDC
(GX touch 50 to order separately)
3 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: SCC110050210
Description: SMART SOLAR MPPT 100/50 VICTRON CHARGE CONTROLLER
MAX CHARGER CURRENT: 50A
MAX PV VOLTAGE: 100V
BATTERY VOLTAGE: 12/24V AUTO SELECT C/W BUILT-IN BLUETOOTH
4 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BPR065022000
Description: Victron smart battery protect
Continous load: 65A
Voltage: 6 - 35V (12/24V)
Over voltage protection C/W bluetooth
5 100% Netherlands/ Malaysia Origin
Victron Energy Vietnam
Code: BBA000100100
Description: Victron battery balancer
Equalizes the state of charge of 2 series connected 12V batteries
<3 jprob 1 100% Germany / EU Origin
Sonnenschein Vietnam / GNB Vietnam
Part number: NGA5120085HS0CA GEL A500 series battery, A512/85A
Sonnenschein GEL A500 series battery, A512/85A
GNB GEL A500 series battery, A512/85A
<3 jprob 1 100% US Origin
MURPHY Vietnam
Model: 42703850-NC20 Battery Charger
Battery Charger, Sentinel 300P, 12/24VDC, 10A, configured for NiCad 20 cells
2 100% US Origin
MURPHY Vietnam
Model: 42703850 Open Frame Battery Charger
Sentinel 300P, 12/24VDC, 10A, Open Frame Battery Charger - Programable
Sentinel 300P, 12/24VDC, 10A, Open Frame Battery Charger 42703850
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD Vietnam
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD Viet Nam
RITZ-INSTRUMENT-TRANSFORMERS-(Shanghai) CO., LTD- Vietnam
1 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: VES7.2-02 (build in VES12-02)
Transformer
Outline Drawing: RS122Z4001.02
6.6/v3:0.1/v3 kV winding 1: 0.5 ,50VA VF:1.9Un/8h 50Hz, E IL: 7.2/20/60kV IEC61869-3
2 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
250/1A
Core 1: 10P10, 10VA Ith=25kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
3 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
150/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
4 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
2000/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
5 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
400/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
6 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
100/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E
IEC61869 2
P1 close to secondary terminal
7 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
200/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
8 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10(build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
600/1A
Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
9 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
2500/1/1A
Core 1: 10P10, 10VA Core 2: 5P20, 20VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
10 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10(build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
300/1A
Core 1: 10P10, 10VA Ith=25kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2
P1 close to secondary terminal
11 100% China Origin
RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD
Part No.: ASS7.2-10 (build in ASS12-10)
Transformer
Outline Drawing: A 10-41-010.05
75/1A
Core 1: 10P10, 10VA Ith=15kA/1s IL: 7.2/20/60kV
50Hz, E
IEC61869 2
P1 close to secondary terminal
